Webbing sling is made by weaving loom ,spliced smoothly and solid. It divided into single layer and double layers .
It can be provided in a smooth wide surface when lifting goods .
They also can match the protection pads in order to reduce the damage .
Type
|
|
|
|
|
|
|
Eye polyester webbing sling webbing sling webbing sling (with pads)
|

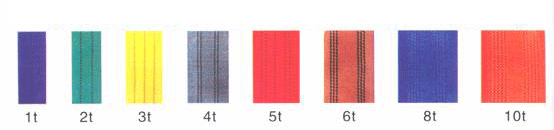

A high-strength fibers webbing sling , hoisting jacket one stripe stands a ton , it is easy to distinguish the lifting capacity.
|
combination
Polyester
|
1t |
2t |
3t |
5t |
8t |
10t |
wll |
1.0 |
2.0 |
3.0 |
5.0 |
8.0 |
10.0 |

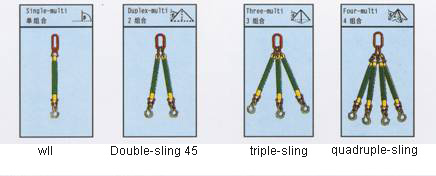

Double-sling(450)) |
1.4 |
2.8 |
4.2 |
7.0 |
11.2 |
14.0 |
double-sling(900)) |
1.0 |
2.0 |
3.0 |
5.0 |
8.0 |
10.0 |
triple-sling(450)) |
1.5 |
3.0 |
4.5 |
7.5 |
12.0 |
15.0 |
quadruple-sling(450)) |
2.0 |
4.0 |
6.0 |
10.0 |
16.0 |
20.0 |
|
