Chain sling
Chain sling is a convenient lifting tool , formed with lifting ring and other Accessories.
The diameter of lifting chain is 6mm—48mm
Designed standard: DIN5685,EN818-2,GB/T20652,GB/T12718,GB/T20946
The general usage grade of chain is S(6),T (8)
The ratio between usage load and breaking load is 1:4
There are single-leg , double-leg ,multi-leg , ring chains and other structure chains.
The characteristics of the chain :Wear-resistant, anti-high temperature, corrosion-resistance, low elongation
lifting chain
Material :high-quality alloy steel ( 20Mn2、20MnV、25MnV and imports of alloy steel ) ;
Manufacturing standards in line with the standard JB/T8108.1-1999 of lifting short chain;
Strength grade ： M(4) 、S(6) 、T(8);
Security assurances: four-fold safety factor, 2.5 proof load.
Elongation of chain breaking ≥ 17%.
The technical parameters of lifting chain |
Diameter of the chain (mm) |
Inside length (mm) |
Outside width(mm) |
weight(kg/m) |
Working load limit KN |
Breaking load |
S6 |
T8 |
S6 |
T8 |
6 |
18 |
21 |
0.79 |
9 |
11 |
35.8 |
45.2 |
8 |
24 |
28 |
1.38 |
16 |
20 |
63.4 |
80.4 |
10 |
30 |
35 |
2.20 |
25 |
32 |
99 |
125 |
12 |
36(42) |
42 |
3.10 |
36 |
46 |
144 |
181 |
14 |
42(50) |
49 |
4.13 |
50 |
63 |
198 |
250 |
16 |
48(56) |
56 |
5.63 |
63 |
80 |
254 |
320 |
18 |
54(64) |
63 |
6.85 |
80 |
100 |
322 |
410 |
20 |
60 |
70 |
8.60 |
100 |
125 |
396 |
500 |
22 |
66(86) |
82 |
10.20 |
120 |
153 |
380.1 |
480 |
24 |
72(86) |
91 |
12.78 |
150 |
180 |
600 |
720 |
26 |
78(92) |
91 |
14.87 |
180 |
213 |
720 |
850 |
30 |
90 |
105 |
19.60 |
227 |
283 |
892 |
1130 |
32 |
60 |
106 |
22.29 |
250 |
322 |
1014 |
1286 |
34 |
66(86) |
109 |
22.70 |
320 |
363 |
1280 |
1450 |
|

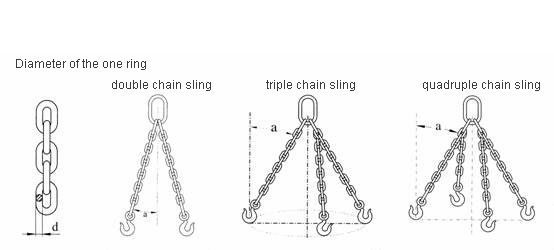

The type of the chain sling： |
|
One, two. three, four –leg sling set |
adjustable special rigging |
|
chain bundle sling
adjustable rolling rigging
adjustable bundle rigging 6.
double-leg tied rigging(basket type chain sling )
adjustable 4-leg sling set
|
|
|
|
the working load (vertical and bundle )
strength grade ：T8 unit：t
|
angle |
|
|
|
|
0°－90° |
90°－120 |
0°－90° |
90°－120 |
Ratio factor |
1 |
0.8 |
4 |
1.6 |
1.4 |
1 |
1.12 |
0.8 |
6 |
1.0 |
0.8 |
4.0 |
1.6 |
1.4 |
1.0 |
1.1 |
0.8 |
8 |
2.0 |
1.6 |
8.0 |
3.2 |
2.8 |
2.0 |
2.0 |
1.6 |
10 |
3.2 |
2.5 |
12.5 |
5.0 |
4.5 |
3.2 |
3.6 |
2.5 |
12 |
4.6 |
3.6 |
18.4 |
7.3 |
6.5 |
4.6 |
5.2 |
3.6 |
14 |
6.2 |
5.0 |
24.8 |
9.9 |
8.7 |
6.2 |
6.9 |
5.0 |
16 |
8.0 |
6.4 |
32 |
12.8 |
11.2 |
8.0 |
8.8 |
6.4 |
18 |
10.0 |
8.0 |
40 |
16 |
14 |
10 |
11 |
8.0 |
20 |
12.5 |
10 |
50 |
20 |
17.5 |
12.5 |
13.7 |
10 |
22 |
15 |
12 |
60 |
24 |
21.2 |
15 |
17 |
12 |
24 |
18 |
14.4 |
72 |
28.8 |
25.2 |
18 |
20.2 |
14.4 |
26 |
21.3 |
17.0 |
85.2 |
34.1 |
29.8 |
21.3 |
23.4 |
17 |
30 |
28.2 |
22.6 |
112.8 |
45.1 |
39.5 |
28.2 |
31.6 |
22.6 |
32 |
32.1 |
25.6 |
128.4 |
51.3 |
44.9 |
32.1 |
35.3 |
25.6 |
34 |
36.2 |
28.9 |
144.8 |
57.9 |
50.7 |
36.2 |
40.5 |
28.9 |
36 |
40 |
32 |
160 |
64 |
56 |
40 |
44 |
32 |
38 |
55.5 |
44.4 |
222 |
88.8 |
77.7 |
55.5 |
61 |
44.4 |
|
working load limit (with angle)
Strength grade：T8 unit：t
|
angle |
0°－90° |
90°－120° |
0°－90° |
90°－120° |
0°－90° |
90°－120° |
Ratio factor |
1.4 |
1 |
2.1 |
1.5 |
2.1 |
1.5 |
6 |
1.4 |
1.0 |
2.3 |
1.6 |
2.3 |
1.6 |
8 |
2.8 |
2.0 |
4.2 |
3.0 |
4.2 |
3.0 |
10 |
4.5 |
3.2 |
6.7 |
4.8 |
6.7 |
4.8 |
12 |
6.5 |
4.6 |
9.6 |
6.9 |
9.6 |
6.9 |
14 |
8.7 |
6.2 |
13.2 |
9.5 |
13.2 |
9.5 |
16 |
11.2 |
8.0 |
16.8 |
12 |
16.8 |
12 |
18 |
14 |
10 |
21 |
15 |
21 |
15 |
20 |
17.5 |
12.5 |
26.2 |
18.7 |
26.2 |
18.7 |
22 |
21.2 |
15 |
32 |
22.9 |
32 |
22.9 |
24 |
25.2 |
18 |
37.8 |
28 |
37.8 |
27 |
26 |
29.8 |
21.3 |
45.3 |
32.4 |
45.3 |
32.4 |
30 |
39.5 |
28.2 |
59.3 |
42.4 |
59.3 |
42.4 |
32 |
44.9 |
32.1 |
67.2 |
48 |
67.2 |
48 |
34 |
50.7 |
36.2 |
76.1 |
52.4 |
76.1 |
52.4 |
36 |
56 |
40 |
84 |
60 |
84 |
60 |
38 |
77.7 |
55.5 |
95.1 |
67.9 |
95.1 |
67.9 |
|
Care and use of chain
1: Must be used in the range of its rated loading
2:chain in a distorted 、 reversed and entangled state are not permitted to use.
3:Objects must hang on the central of the hook , the edge of the hook shall not be hung in . The heavy objects should not be hung in hook for a long time .
4:If one of the following things appears , chain slings should be stopped using immediately
A: Diameter damaged 10% of the original
B: Chain appears cracks , bending , distorting or surface damage ( phenomenon )
C: chain’s permanent elongation exceed 5% of the original length .
|
