The art of the round sling
The round sling is made by fiber, the inner load-bearing core is formed by endless circled , the outside is braid sleeve to protect the load-bearing fibers.
Characteristics
1.low elongation ,working load≤3%,breaking load≤10%.
2. The maximum load reach to 1000t, the effective length can reach to 100m
3. It is very convenient to operate even in a small space .
4. The Security insurance coefficient is 6:1
5. Lifting objects is protected effectively.

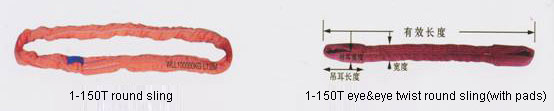

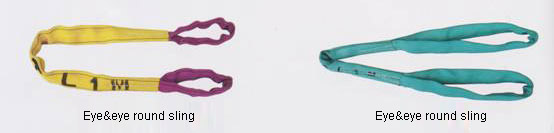

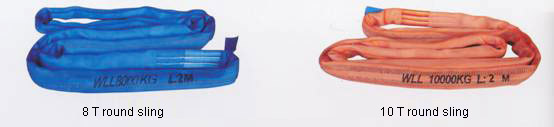

TYPES

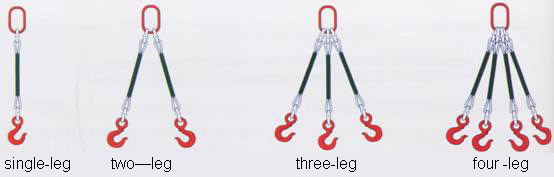

combinations



working load limit
      one hoisting work load   two hoisting work load   four hoisting work load
(kg) (kg) (kg)


Round sling

Web sling

Sling set

Way factor


care and use of sling

1.lifting sling with the surface damage is an important factor in reducing the strength .When the surface tear , the tape will rapidly damage. The surface fiber fracture ( not the fault ) , as long as the scope is not too big and it would not affect.
2: Never exceed the working load limit of a chain sling.
3.Shall not focus on the way that use bolt to lift without protection .
4: The soft ring’s lifting device must be:
A: smooth without any sharp edges
B: its should not be torn or the belt overload .
5: Lifting should observe the following measures.
A: do not shockloas when moving
B: not to tie belt
C: Eliminate all twists, knots or kinks before lifting.
D: Do not use the sling (with no pads) to lift the cargo which is sharp or having edages , especially when belt has some abrasion or wear .
E: do not lift goods too much time
F: DO not take away the strap when it working
G: notice the load
H: avoid soft ring angle opened more than 20 degree.

6: ensure the load unchanged when it working . if several belts use in the same time , as far as possible balance the load.
7: if used in high-temperature occasions or lifting chemical substances , should be in accordance with the manufacture and distributor of the guidance . tape dirtied or have been used in acid-base environment should be immediately washed with clean water.
8: sling should be kept in the place where can avoid light and no UV radiation .
9: sling should not be kept in the place where have spark or heat around.
10: each tape should be carefully examined before use.
11: Return slings to manufacturer to ensure proper repair procedures are followed.
12: Store chain slings in a clean, dry area, preferably by hanging on racks or A-frames



usage
