Fall arrester device fall arrester
(retractable fall arrester)
1.Fall arrester device, fall arrester, retractable fall arrester is the second protection for people and goods when they are lifted.
2.Fall arrester device include the fall arrester ,fall arrester with webbing strap, climbing fall arrester and fall arrester for heavy goods.
3.The rope of the fall arrester divided three kind, steel wire rope, Stainless steel wire rope, nylon strap.
4.steel wire rope fall arrester beard high impact force, small in size. nylon strap fall arrester takes easy , light in weight , and insulation.
5. Climbing fall arrester used easily and have no height limited.

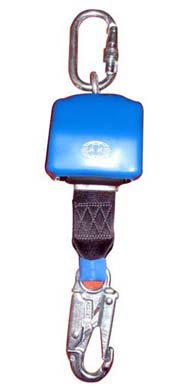

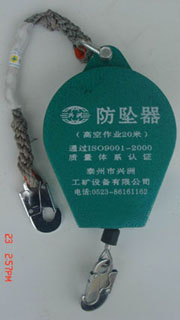

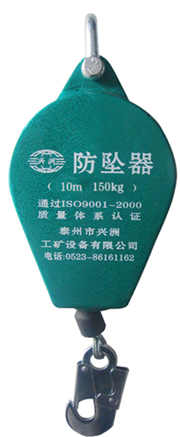

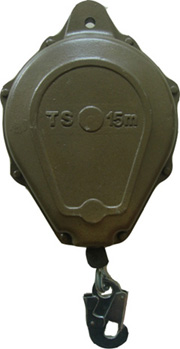

Fall arrester retractable fall arrester
It is a new patent security product, sealed aluminum Jacket ,automatically controlled by the changed speed.
It is an innovative engineering solution to arrest falls by two-disc anti-ratchet braking system
During the operation use the rope is free .The normal conditions (less than 2 meters per second) does not affect the operation.
The specifications (steel wire) length has 3m 5m 10m 15m 20m 30m. 40m
The specifications (strap) length:2.5m
We also supply the work load 150kg, 200kg according you need.

1.widely used in the altitude working filed ,such as the field of power, oil field , construction, bridge project, Telecommunications, chemical, pharmaceutical
2.the working theory and structure
Ratchet theory is used in this product. Hang high ,use low. when using ,hang nylon sling to the fixed beam, safe hook vise the lifting ring, locked hook in the safety belt linked the semi-ring ,the device can work safely. when work the safety belt is still in half-tight. The fall arrester can be clasped on to an anchorage line so as to accompany the user without requiring manual adjustment during upward or downward movement, and it locks automatically on the anchor-line when a fall occurs.it can stop dropping automatically within 0.2meter, it can eliminated the need of extended fall distance clearance, minimizing the risk of injured .when worked over, the safety belt will retracted to the fall arrester , easily to carry.
Aluminum alloy jacket , firm materials ,air-wires as the safety rope, high strength , Wear-resistant. Comply to CB6095-85 standard for safety belt.
3.the main parameter

Attention: weight include sling , shackle and fall arrester
4.care &use of fall arrest
1>hang it highly and use it low .during using it ,hang it on the fixed beam above user, prohibit using with other fittings, such as safety belt and etc.
2>check wire rope no breaking section , halyard no cutting damage, and the device can operate well before using it. pull the wire rope , have the sound”tata”,is normal
3> nylon sling should not to hang in the sharp edge .if this ,the nylon sling will be damage and unworkable.
4>cleaned the steel wire rope if working in rainy day, if not will shorted the life of the steel wire rope .
5>parts of device are not permitted to refit or disassemble
6>keep wire rope from twist or knot .do not twist with other ropes across, or catch it other position ,or contact with things with edge.
7>The steel wire rope must stay in halyard when it not work.
8>Do not use it near a machine of turning mechanism, if the rope enter into the machine, there will be some trouble to you.
9>the working life of the fall arrester is two years if you used them meet the requirements. if you have a lot not used fall arresters, they are not usually used but exceed two years, please choose 1-2 worst fall arrester to examination. the way of examination is follow:
A.>take the fall arrester to the fixed beam ,80kg load lifted to the air by sling, make the 80kg load fall free.
B>in the Hydraulic testing machine , the fall arrester locked, the load upto 6000N.
After ,check the automatic lock function and the steel wire rope, if normal , continue using 3months. 3month one examination after this time, and the tested fall arrester prohibit to use
10>if the fall arrester worked in bad environment (heavy dust, high acid and alkali),the customer should check the fall arrester frequently to guarantee the security .if have some defect , stop using or back to manufactory to maintenance

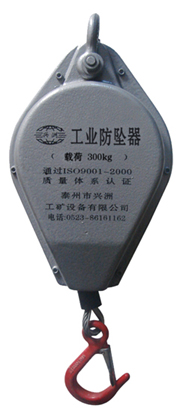

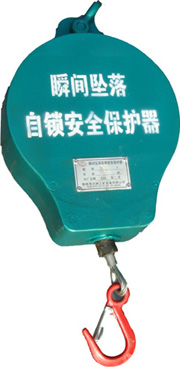

Xingzhou brand industry heavy fall arrester
retractable fall arrester ,self –locking fall arrester
Usage guideline
Xingzhou produce more than one hundred thousand fall arresters every year. The fall arrester can bear the work load of 300kg-5000kg ,suited the heavy industry , satisfied the users’ need and passed the quality supervision departments’ safety inspection in may 2007. the gap distance under 10cm .it is a protector to the worker and the goods, useful for protecting the goods dropping , extensively used in assembly of car ,construction and port unload working. Now, our product is improved , optimum self-locking , high strength , flexible and can manufacture the fall arrester according your need.

The parameter of the industry heavy fall arrester

Care and maintenance
1.industry heavy fall arrester is used to lifting or hanging the goods, protect falls. Prohibit used to lifting people , elevator (load people) ,and other facilities .
2.the customer should offer the details to supplier before purchase.
3.must fixed the fall arrester to the place where can bear 3 times rated load, if not the fall arrester should not arrest falls.
4.check the steel wire rope ,if there is some breaking or damage to the strain , you should stop using or back to supplier for maintenance.
5.check the flexible ,pull the wire rope before using the fall arrester. and if there are the sound”tata”,is normal
6.when you use fall arrester, with aluminum steel wire rope, you should clean the rope after you used over especially when the rope get some oil or water.
7keep wire rope from twist or knot .do not twist with other ropes across.or catch it other position,or contact with things .
8. check the fall arrester frequently to guarantee the security ,especially the automatic locked feature and wears about the steel sling.frequently used occasion ,two years the product should back to manufactory to maintenance

My pursuit is to satisfied you request

Climbing fall arrester
Automatic lock
It is necessary to hang the rope in advance , vertical、horizontal or tilt .
Fall arrester can move freely in the ropes and adapt to different operation points.
Self-locked hook can be clasped on to the anchor-line when a fall occurs.
Diameter of the safety rope: 16mm,18mm,20mm
It can divided two branch: upper and down free sliding , upper free sliding down hand sliding
